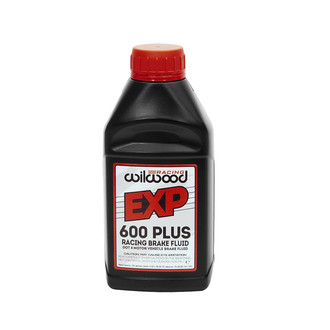

Wilwood EXP Super Hi-Temp 600 Plus Racing Brake Fluid has been specially formulated for racing applications where brake systems consistently operate at very high temperatures. In addition to guarding against vapor lock, EXP Super Hi-Temp 600 Plus Racing Brake Fluid maintains its viscosity and lubricity under extreme temperatures for maintaining brake system reliability and performance. EXP Super Hi-Temp 600 Plus Racing Brake Fluid conforms to, and exceeds U.S. specification FMVSS No. 116 DOT 4. Typical dry boiling point: 594° F (312° C). Typical wet boiling point: 399° F (204 °C).

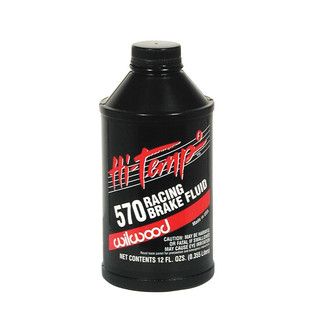

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F. dry boiling point of to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal.

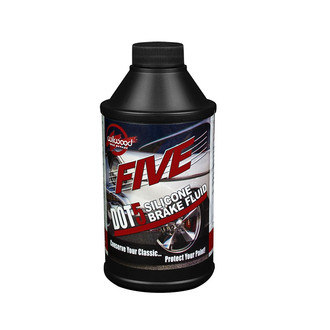

Wilwood FIVE is a highly refined silicone brake fluid, formulated to preserve the looks and reliability on classic vehicles and show cars. Its non-hygroscopic blend blocks moisture absorption to inhibit internal system corrosion. It is paint friendly and will not harm most custom finishes should a spill or leak occur.
Wilwood's new XR Race-Only* brake fluid is the same extreme high-temperature fluid used in Formula 1, World Rally Championship, FIA World Endurance, and Moto GP. Laboratory testing indicates XR Race-Only fluid has a dry boiling point of 645° F thanks to a proprietary blend of high-performance polymer electrolytes and borate esters. This polyglycol-ether-based brake fluid combines the lowest compressibility, lowest moisture affinity, and highest resistance to aeration of any brake fluid available. XR Race-Only Brake Fluid is formulated to deliver the absolute best, most consistent pedal feel, start to finish, even in the most adverse racing conditions. For racers, the wet boiling point is irrelevant; only a high dry boiling specification matters. If the brakes are bled and filled with fresh fluid before events as part of your pre-race ritual, you will never absorb enough moisture to lower the dry boiling point.
The premium metal 16.9 ounce can with airtight safety seal ensures fresh, clean fluid upon opening. (* For off-highway use only. Not DOT approved.)
Due to a high-performance brake system's extreme operating temperatures, standard parts' store brake fluid is not recommended. Never mix brake fluids of different DOT classifications.
Of critical importance is the brake fluid's dry boiling point - the temperature at which a brake fluid will boil in its virgin non-contaminated state. The minimum dry boiling point temperature is 401° F for DOT 3 fluid, and 446° F for DOT 4. All Wilwood brake fluids exceed these standards, with Hi-Temp° 570 rated at 570° F, EXP600 Plus rated at 626° F, and XR Race-Only at 645° F.
Moisture enters your brake system through condensation, weather, ambient humidity, or washing the exterior. Glycol based brake fluids are hygroscopic (they absorb moisture), and over time the boiling point is gradually reduced. The DOT 3 minimum wet (roughly 4% water absorbed) boiling point temperature is 284° F, DOT 4 is 311° F. All Wilwood brake fluids exceed these wet boiling standards, with Hi-Temp° 570 rated at 313° F, EXP600 Plus rated at 417° F, and XR Race-Only at 432° F.
Silicone DOT5 fluid is often used in classics, show cars, and pre-ABS Harley-Davidson motorcycles to prevent corrosion. Silicone fluids have a neutral PH and do not attract moisture like DOT 3 and DOT 4 fluids and is paint-safe if spilled. However, DOT 5 is not compatible with glycol-based DOT 3, DOT 4, or DOT 5.1 fluids, and will turn to gel if mixed. Wilwood does not recommend using silicone-based DOT 5 fluid in racing applications because it is prone to aeration and foaming under normal braking conditions, providing a spongy brake feel.
Whenever you add fresh fluid to your existing system, it immediately becomes contaminated, lowering the new fluid's boiling point. For maximum performance, use a high boiling point fluid and flush the system thoroughly. For street cars, flush and refill the fluid every year. For race or track driven cars it can be beneficial to change the fluid after every race weekend, especially after racing in the rain, severe temperature use, or brake fluid boiling.
