Conical Valve Spring Kit for GM LS1, LS2 and LS3 w/ Tool Steel Retainers

Part Number 7230TS1-KIT (132625383)
Package contents: 1 Kit per Box
Color
Steel
MADE IN USA
$780.95 FREE SHIPPING

Out of stock
FREE SHIPPING

Description

The springs conical design features a smaller diameter in the upper half to reduce active mass. This reduction in mass, along with the progressive frequency created by the conical shape, dampens coil oscillations better than any other spring design. These improvements allow for the use of more aggressive Camshafts and an increase in RPM limit speed. Finally, Superfinish processing of the springs results in increased durability and spring life.

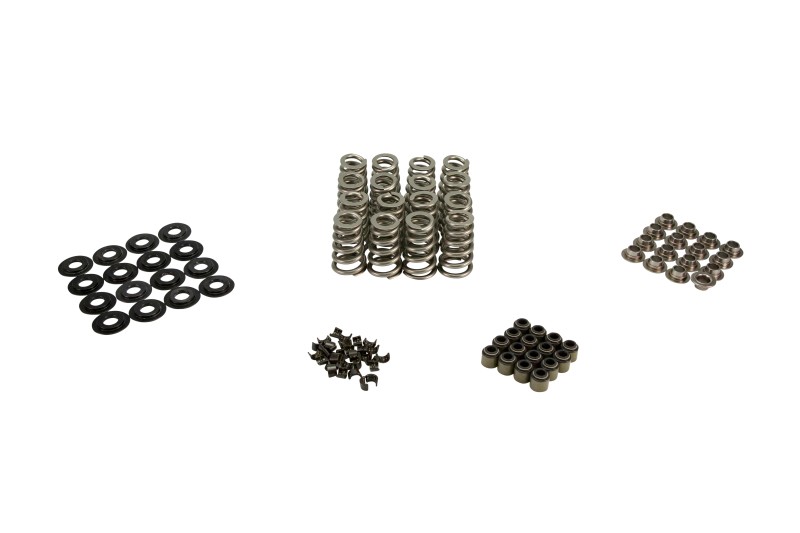

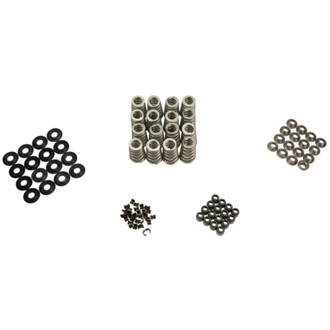

Kit includes:

#7230-16 Conical Valve Springs
#1774-16 +.100 Tool Steel Retainers
#623-16 Valve Locks
#511-16 Valve Seals
#4680-16 Spring Seats

Specifications

Barcode 00036584395553
Big End Outside Diameter 1.332 in
Coil Bind Height 1.175 in
Color Steel
Country Of Origin USA
Damper No
Dimensions 12" x 6" x 3"
Free Length 2.193 in
ID Big End 0.932 in
ID Small End 0.661 in
Included Seats 4680-16
Includes Retainers? Yes
Includes Seats? Yes
Includes Shims? No
Installed Height 1.9 in
Max Lift 0.675 in
Number Of Springs 1
Open Load 495 lb
Retainer Material Tool Steel
Seat Pressure 145 lb
Small End Outside Diameter 1.061 in
Spring Rate 518.5 ppi
Spring Seat Type Steel
Spring Style Conical
Street Legal Yes
Valve Spring Series Conical
Weight 4.2 lbs

Warranty

12 Months
