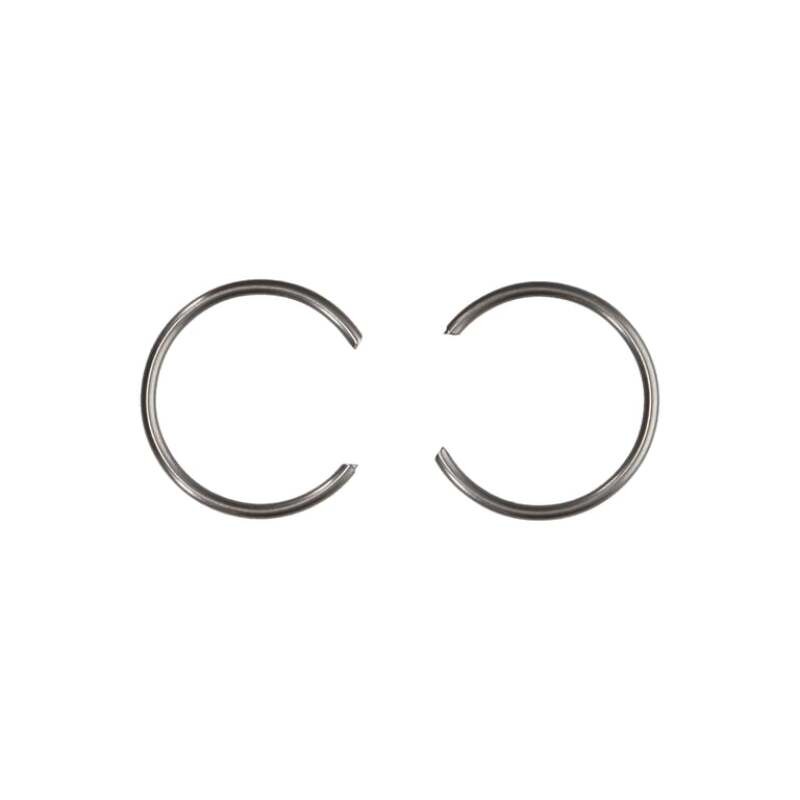

Wrist Pin Retainer, Wire Lock, 0.787 in. Dia., 0.050 in. Thickness, Each.

Part Number 787-050-MW (132530163)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
$3.99 FREE SHIPPING

In stockShips by 24th Nov
FREE SHIPPING

Description

Most JE shelf pistons include double spiro locks as standard equipment. These locks are installed by spreading the lock and rotating it into the piston pin boss. Wire locks are installed similarly, but require chamfered wrist pins. Wire locks tend to spread side loads over more of the piston pin boss area and are considered to be a stronger pin retention method. Hook wire locks have an integrated hook at the end gap to prevent rotation within the lock groove. Tru-arc locks fall between these to and can be used with the stock sharp edge wrist pins’ the advantage of tru-arc locks is the ease of installation and reusability (spiro locks cannot be re-used). However, tru-arc locks are only recommended for lower horsepower applications.

Fitment

This part fits the following vehicles.

Honda

  • 1996-2004 XR400R

Husqvarna

  • 2014-2015 FC450
  • 2014-2016 FE450

KTM

  • 2013-2015 450 EXC
  • 2005-2006 450 SMR
  • 2013-2016 450 SX-F
  • 2013-2015 450 XC-F
  • 2013-2015 450 XC-W
  • 2000-2002 520 EXC
  • 2000-2002 520 SX
  • 2003-2007 525 EXC
  • 2004-2006 525 SMR
  • 2003-2006 525 SX

Suzuki

  • 2000-2016 DR-Z400

Yamaha

  • 2016-2017 WR450F
  • 2014-2017 YZ450F
  • 2016-2017 YZ450FX

Features & benefits

  • Chrome Silicon Wire Lock

Specifications

Barcode 00193564006257
Dimensions 1" x 1" x 0.1"
Engine Type ICE
Product Type Engine Piston Wrist Pin Retainer
Weight 0.25 lbs
Wrist Pin Retainer Diameter 0.787 in
Wrist Pin Retainer Material Chrome Silicon
Wrist Pin Retainer Quantity 2
Wrist Pin Retainer Style Wire Lock
Wrist Pin Retainer Thickness 0.050 in

Warranty

30 Months

About JE Pistons

JE pistons are all designed, forged, and machined in-house, allowing control over every step of the piston-making process. JE Pistons 7+ decades of experience in high-level racing has led to offering premium racing features, including full billet construction, EN plating, and purpose-designed coatings, to name a few.
