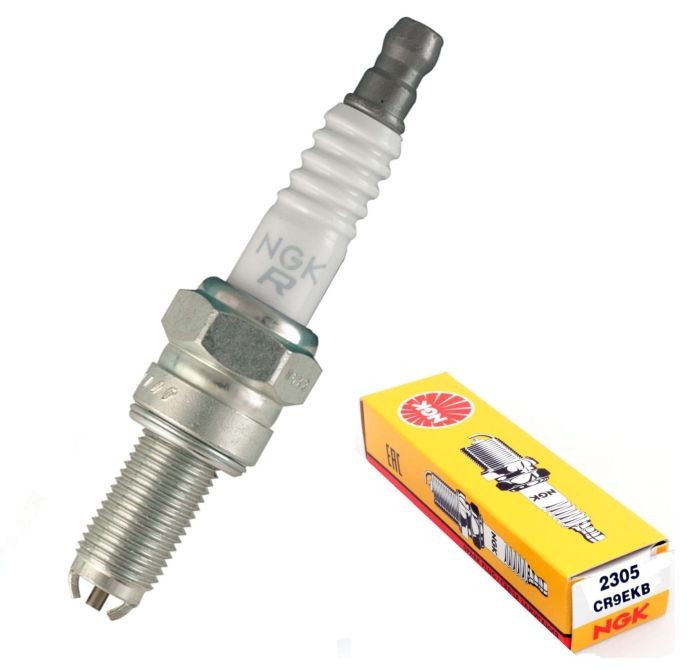

CR9EKB MULTI-GROUND Spark Plug

Part Number 2305 (132649002)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
$11.58

In stockShips by 24th Nov

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

Aprilia

  • 2013-2015 RSV4 Factory APRC ABS
  • 2012 RSV4 Factory SE
  • 2012 RSV4 R
  • 2013-2015 RSV4 R APRC ABS
  • 2016-2018 RSV4 RF
  • 2016 RSV4 RF LE
  • 2016-2018 RSV4 RR
  • 2011 Tuono 1000 R
  • 2018 Tuono V4 1100 Factory
  • 2015-2017 Tuono V4 1100 Factory ABS
  • 2018 Tuono V4 1100 RR
  • 2015-2017 Tuono V4 1100 RR ABS
  • 2012-2013 Tuono V4 R APRC
  • 2014 Tuono V4 R APRC ABS

BMW

  • 2008-2010 G450X

Buell

  • 2009-2010 1125CR
  • 2008-2010 1125R

Erik Buell Racing

  • 2012-2013 1190RS
  • 2014, 2016-2017 1190RX
  • 2014, 2016-2017 1190SX
  • 2017 Black Lightning

Husaberg

  • 2013 FE250

Husqvarna

  • 2009 SM 450RR
  • 2012-2013 TC449
  • 2012-2013 TE449
  • 2012-2013 TE511
  • 2012 TXC 511

KTM

  • 2006-2012 250 SX-F
  • 2007-2009, 2012-2013 250 XC-F
  • 2007-2013 250 XCF-W
  • 2009 450 SMR
  • 2007-2013 450 SX-F
  • 2008-2009 450 XC-F
  • 2008-2009 505 XC-F

MV Agusta

  • 2013 Brutale 675
  • 2012-2013 F3 675
  • 2013 F3 675 EAS

Features & benefits

  • COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
  • RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Corrugated ribs to prevent flashover
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Specifications

Barcode 00087295023051
Center Electrode Core Material Copper
Center Electrode Design Standard
Center Electrode Insulator Tip Projection 2.5 mm
Center Electrode Projection Mid Projection
Center Electrode Tip Material Nickel
Country Of Origin JP
Dimensions 4.3" x 3.3" x 1.8"
Electrical Terminal Type Non-Removable Nut
Grade Type Standard Replacement

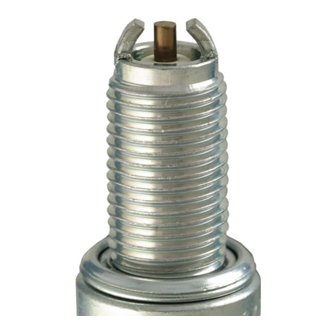

Ground Configuration Multi-Ground Electrode
Ground Electrode Core Material Nickel
Ground Electrode Quantity 2
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Nickel
Hex Size 5/8" (16mm)
Insulator Height 50.8 mm
Insulator Material Ceramic
Manufacturer Heat Range 9
Metallurgy Copper
Part Number CR9EKB
Pre-Gap Size 0.7 mm
Reach 19.0 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number CR9EKB
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M10 - 1.0
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
Weight 0.9 lbs

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).
