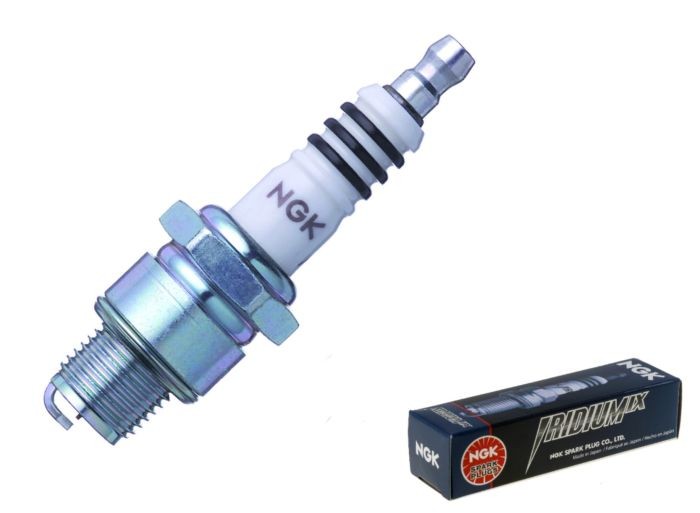

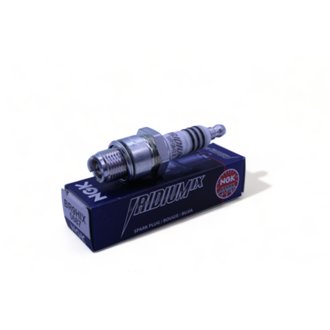

Iridium IX Spark Plug (BR9HIX

Part Number 5687 (132648490)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
PERFORMANCE PART
$7.70

In stockShips by 24th Nov

Description

NGK Iridium IX spark plugs are specifically designed for the performance enthusiast. Iridium IX provides outstanding acceleration, high fuel efficiency and durability. NGK Iridium IX plugs offer extreme ignitability and exceptional anti-fouling. Tapered cut ground electrode provides improved starting, idling and throttle response. The Iridium fine wire center electrode's durability is six times harder than platinum. Iridium alloy's extremely high melting point is perfect for today's engines. For even greater performance consider upgrading to an NGK Ruthenium HX plug.

Fitment

This part fits the following vehicles.

Cobra

  • 1994-1997 BM50
  • 1997-2000 CM50
  • 1997 KING

Kawasaki

  • 1967-1968 A7 Avenger
  • 1967-1968 A7SS
  • 1973-1975 F11
  • 1971-1975 F7
  • 1970-1971 G31M
  • 1972-1975 H1 Mach III
  • 1972-1975 H2 Mach IV
  • 1976-1979 KD175
  • 1976 KH250
  • 1976 KH500
  • 1974 KX450
  • 1973 S1 Mach I
  • 1972-1973 S2 Mach II

Maico

  • 1981-1983 250
  • 1978-1979 250 Enduro
  • 1981-1983 400

Yamaha

  • 1972 CS5

Features & benefits

  • TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
  • RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • Outstanding acceleration, high fuel efficiency and durability
  • Fine iridium tip ensures durable and consistent spark

Specifications

Barcode 00087295056875
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 1.5 mm
Center Electrode Projection Non-Projected
Center Electrode Tip Material Iridium
Country Of Origin JP
Dimensions 4.1" x 3.6" x 0.9"
Electrical Terminal Type Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Taper Cut
Ground Electrode Tip Material Nickel
Hex Size 13/16"
Insulator Height 56.3 mm
Insulator Material Ceramic
Manufacturer Heat Range 9
Metallurgy Single Iridium
Part Number BR9HIX
Pre-Gap Size 0.8 mm
Reach 12.7 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number BR9HIX
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M14 - 1.25
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
Weight 0.5 lbs

Warranty

2 Months

Magnuson-Moss Warranty Act

Legally, a vehicle manufacturer cannot void the warranty on a vehicle due to an aftermarket part unless they can prove that the aftermarket part caused or contributed to the failure in the vehicle (per the Magnuson Moss Warranty Act (15 U.S.C. 2302(C)).

California residents

WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
