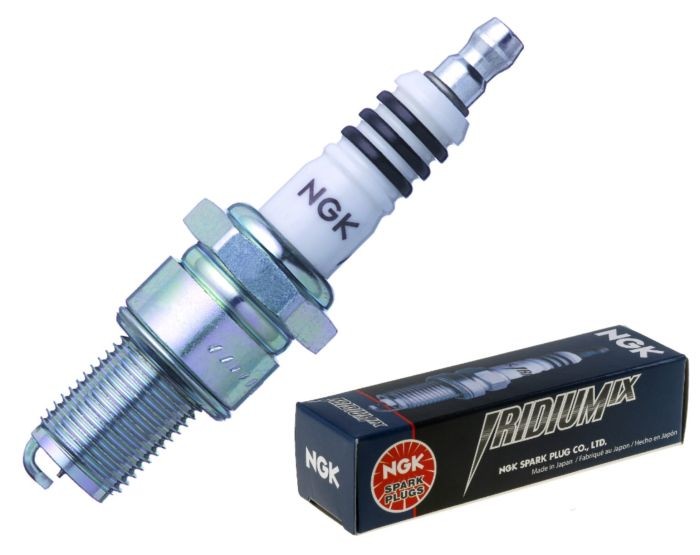

BR10EIX Iridium Ix Spark Plug Removable Terminal Nut

Part Number 6801 (132648117)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
PERFORMANCE PART
$4.91

In stockShips by 24th Nov

Description

NGK Iridium IX spark plugs feature an ultra-fine center electrode that's designed just thick enough to ensure the maximum durability and life of the spark plugs—and just thin enough to create an accurate and consistent spark. They represent the ultimate evolution of spark plug technology and performance. Iridium is the hardest metal used in spark plugs today—six times harder than platinum. This allowed NGK engineers to reduce the voltage requirement for a spark. Iridium IX plugs are available in more than a hundred configurations for universal and vehicle-specific applications.

Fitment

This part fits the following vehicles.

Aprilia

  • 1997-2002, 2006-2009 RS 125

ATK

  • 2001 125 CC
  • 2003 125 DS
  • 2002-2003 125 Enduro
  • 2000 125 LQ
  • 2003 125 PE

Bultaco

  • 1977-1979 Pursang 250
  • 1977-1979 Pursang 370

Cobra

  • 2003 CH2
  • 2003 PW3

Honda

  • 1986-2002 CR80R
  • 1996-2002 CR80RB Expert
  • 2003-2007 CR85R
  • 2007 CR85RB Expert

Husqvarna

  • 1992, 1996-1997 WXC 125
  • 1990-1991, 1994-1997 WXE 125

Kawasaki

  • 1970-1971 H1 Mach III
  • 1983-1990 KX125
  • 2000-2009, 2011-2019 KX65

KTM

  • 1996 125 EXC
  • 1995-1997 125 SX

Suzuki

  • 1979 PE175
  • 1979 PE250
  • 2004-2005 RM65
  • 1986-2001 RM80
  • 2002-2009, 2012, 2015-2017 RM85
  • 2003-2008, 2012 RM85L

Yamaha

  • 1977-1978 IT175
  • 1976-1981 YZ100
  • 1976-1981 YZ125
  • 1984-2001 YZ80
  • 2002-2020 YZ85

Features & benefits

  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • IRIDIUM ALLOY CENTER ELECTRODE: Iridium's density (6x that of platinum) and extremely high melting point is perfect for modern high efficiency engines
  • TAPERED CUT GROUND ELECTRODE: Reduced quenching design produces outstanding ignitability, improved acceleration, fuel efficiency and durability
  • RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
  • SINGLE IRIDIUM TIP: Fine wire 0.6 millimeter iridium tip center electrode ensures high durability and a consistently stable spark
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • Outstanding acceleration, high fuel efficiency and durability
  • Fine iridium tip ensures durable and consistent spark

Specifications

Barcode 00087295068014
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Insulator Tip Projection 1.5 mm
Center Electrode Projection Non-Projected
Center Electrode Tip Material Iridium
Country Of Origin JP
Dimensions 4" x 3.6" x 1"
Electrical Terminal Type Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Taper Cut
Ground Electrode Tip Material Nickel
Hex Size 13/16"
Insulator Height 56.0 mm
Insulator Material Ceramic
Manufacturer Heat Range 10
Metallurgy Single Iridium
Part Number BR10EIX
Pre-Gap Size 0.8 mm
Reach 19.0 mm
Resistance 5000.0 82
Resistor Type Yes
Seat Type Flat
Service Number BR10EIX
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M14 - 1.25
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
Weight 0.6 lbs
