NGK Authorized Dealer

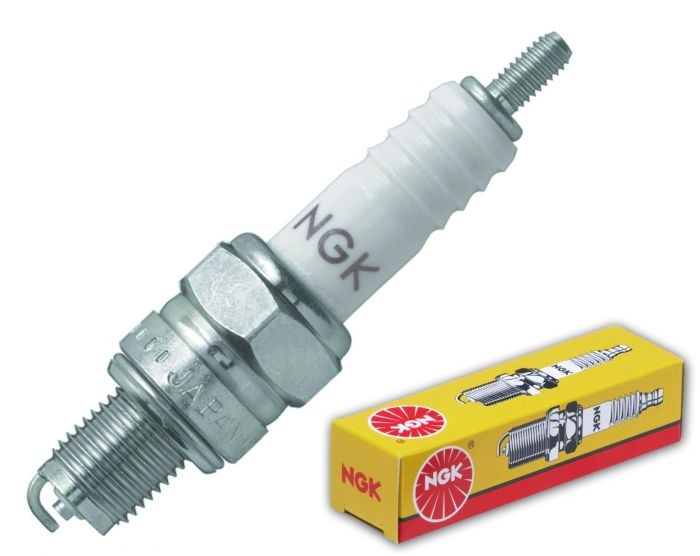

Standard Spark Plug (C7HSA

Part Number 4629 (132648478)
Package contents: 1 Each per Box
Select vehicle for guaranteed fit
Color
Tan
$2.30

In stockShips by 24th Nov

Description

NGK Standard spark plugs (in the iconic NGK 'yellow box' packaging) are a proven OE cornerstone and technology customers have relied on for decades. Engineered specifically for OE applications, NGK Standard spark plugs provide OE quality nickel alloy reliable performance and design. NGK's legendary high grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance, while triple gasket sealing prevents combustion gas leakage. Solid 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges. Trivalent metal plating ensures superior anti-corrosion and anti-seizing properties.

Fitment

This part fits the following vehicles.

Honda

  • 1980-1981 C70
  • 1963 CA100
  • 1963 CA102
  • 1963 CA105T
  • 1963 CA110
  • 1969-1972 CL70 Scrambler
  • 1978-1979 CM185T Twinstar
  • 1980-1981 CM200T Twinstar
  • 1970-1980 CT70
  • 1971-1975 QA50
  • 1965 S65
  • 1971, 1973 SL70
  • 1974-1976 XL70
  • 1977-1979 XL75
  • 1980-1981 XL80S
  • 1981 XR100
  • 1973-1978 XR75
  • 1979-1981 XR80

KYMCO

  • 2002-2004 Filly 50
  • 2004-2007 Vitality 50

LEM

  • 2010-2013 DX150
  • 2013 DX150 40th
  • 2010-2013 DX150 Motard
  • 2013 DX150 Motard 40th
  • 2010 RX 150
  • 2011 RX 150 Motard

Features & benefits

  • COLD-ROLLED THREADS: Prevents cross-threading and damage to cylinder heads
  • SOLID COPPER CORE: 98% pure copper core offers superior heat dissipation, conductivity and ultra wide heat ranges
  • RECOMMENDED USAGE: Best for vehicles with OE nickel alloy plugs, not recommended on vehicles with factory precious metal plugs
  • TRIVALENT METAL PLATING: Delivers superior anti-corrosion and anti-seizing properties, ensuring ease of installation and removal
  • NGK's OE CERAMIC TECHNOLOGY: High grade alumina silicate ceramic creates a stronger insulator for optimal dielectric performance
  • ACTUAL OE or EQUIVALENT DESIGN: OEM quality construction nickel alloy center electrode provides consistent performance
  • Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
  • Trivalent metal plating for superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Specifications

Barcode 00087295046296
Center Electrode Core Material Copper
Center Electrode Design Standard
Center Electrode Insulator Tip Projection 1.65 mm
Center Electrode Projection Non-Projected
Center Electrode Tip Material Nickel
Color Tan
Country Of Origin JP
Dimensions 4.1" x 3.6" x 1.1"
Electrical Terminal Type Stud
Grade Type Standard Replacement
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Nickel
Hex Size 5/8" (16mm)
Insulator Height 47.7 mm
Insulator Material Ceramic
Manufacturer Heat Range 7
Metallurgy Copper
Part Number C7HSA
Pre-Gap Size 0.7 mm
Reach 12.7 mm
Resistance 0.0 82
Resistor Type No
Seat Type Flat
Service Number C7HSA
Short Style Spark Plug No
Skirt No
Skirt Length 0.0 mm
Street Legal Yes
Thread Size M10 - 1.0
Thread Type Standard Metric
Washer Type Crush
Washer(s) Included Yes
Weight 0.31 lbs

Warranty

2 Months
